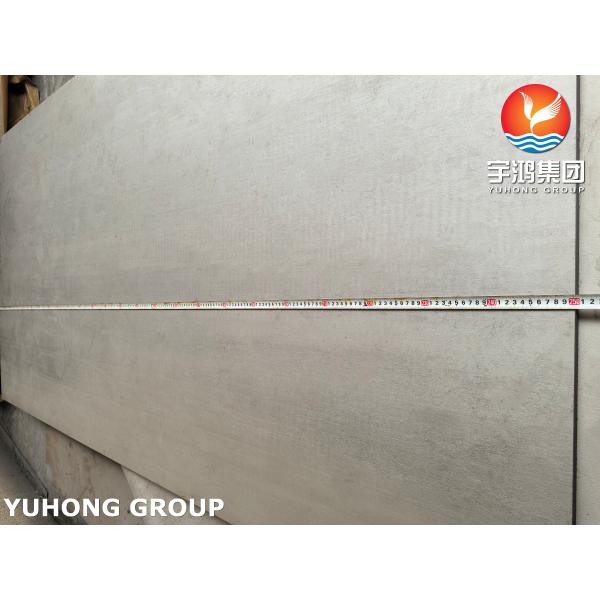

ASTM A240 316L Low Carbon Austenitic Stainless Steel Plate For Reactors , Heat Exchanger
ASTM A240 specifies the requirements for chromium, chromium-nickel, and chromium-manganese-nickel stainless steel plate, sheet, and strip used in pressure vessels and general applications. Grade 316L is a low-carbon austenitic stainless steel renowned for its superior corrosion resistance, weldability, and versatility.
ASTM A240 316L stainless steel plate is a go-to material for applications demanding excellent corrosion resistance, weldability, and moderate high-temperature performance. Its molybdenum and low-carbon composition make it ideal for chemical, marine, medical, and architectural uses.
Chemical Composition of 316/316L Steel Plate
| Chemical Composition of 316/316L steel |
| Element |
316 |
316L |
| Carbon |
0.08 |
0.030 max |
| Chromium |
16.0-18.0 |
16.0-18.0 |
| Nickel |
10.0-14.0 |
10.0-14.0 |
| Molybdenum |
2.00-3.00 |
2.00-3.00 |
| Manganese |
2.00 |
2.00 |
| Silicon |
0.75 |
0.75 |
| Nitrogen |
0.10 |
0.10 |
| Phosphorus |
0.045 |
0.045 |
| Sulfur |
0.030 |
0.030 |
Mechanical Properties of 316/316L Steel Plate
| Mechanical Property of 316/316l |
316 |
316L |
| Yield Strength, min. (ksi) |
30 |
25 |
| Tensile Strength, min. (ksi) |
75 |
70 |
| Elongation, min. (%) |
40 |
40 |
| Hardness, max. (Rb) |
95 |
95 |
Stainless Steel Standards of 316/316L steel
| Steel Standards of 316/316L |
| 316 |
316L |
| ASTM A240 |
ASTM A240 |
| ASTM A666 |
ASTM A666 |
| ASME SA240 |
ASME SA240 |
| AMS 5524 |
AMS 5507 |
Application
316L plates are widely used in industries requiring corrosion resistance and durability:
- Chemical Processing: Tanks, reactors, and piping for aggressive chemicals.
- Marine and Coastal: Boat components, offshore platforms (limited chloride exposure).
- Pharmaceutical/Medical: Surgical instruments, bioreactors (non-reactive, sterilizable).
- Food and Beverage: Equipment for brewing, dairy, and processing (hygienic, FDA-compliant).
- Architecture: Coastal building cladding, structural components.
- Energy: Flue gas desulfurization (FGD) systems, heat exchangers.
